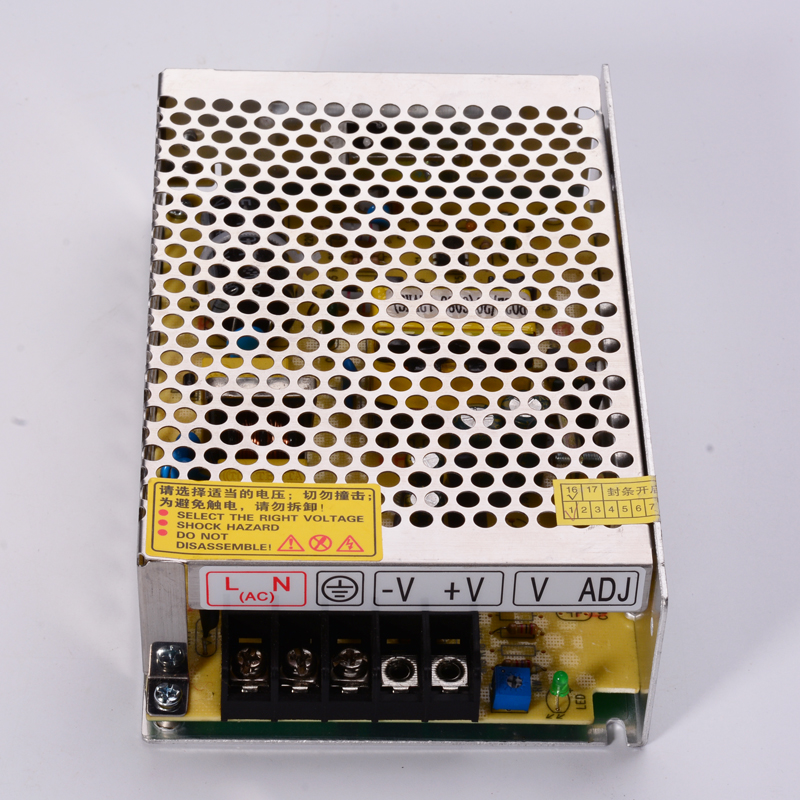

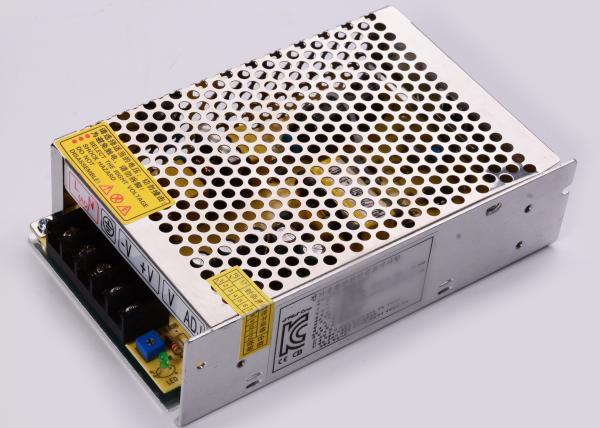

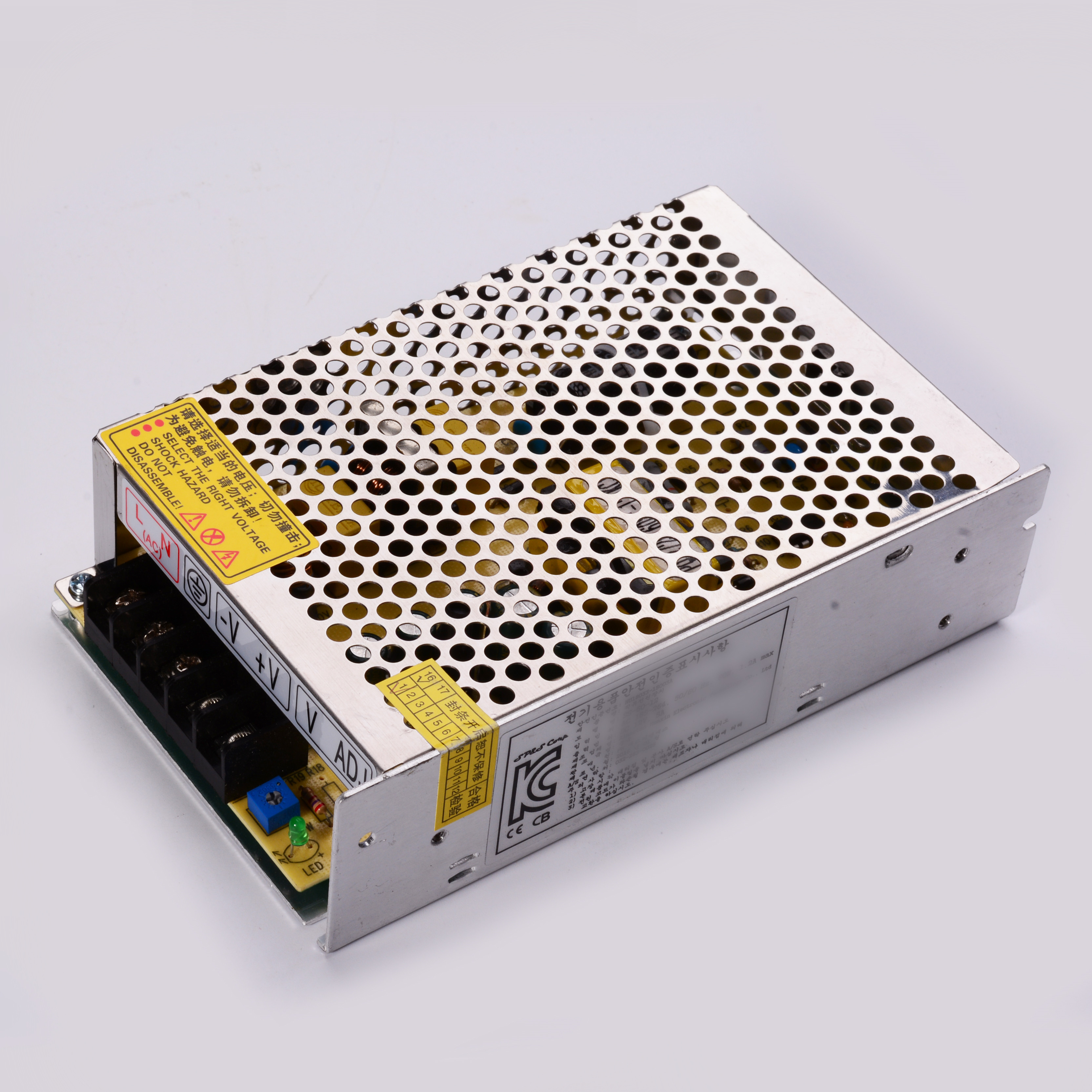

12V5A 60W LED Module Power Supply KC KCC Power Supply for LED Module and LED Strips and LED Sign
1. *Product Description*:
--Advantages:
* AC input 185-264V, 50/60Hz
* DC output 12V 5A 60W
* Efficiency: >80%
* IP20 indoor use, 100% OEM compatible, 2 years warranty;
* Constant voltage, single input and output design;
* Workable from -20 degree to 60 degree;
* Separated level for thermal dissipation;
* Protections: short circuit, over load and over voltage;
* Defective rate is less than 1% in 2 years.
* 100% full load burn-in test before delivery;
* NO MOQ, regular stock, quick delivery;
* Application: LED Sign, LED Advertising, LED Illumination, etc.
1. Output Characteristics:
1.1 Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 12V | 0A | 5A | 66W | 60W |
1.2 Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 12V | 0A | 5A | ±3% | ±5% |
1.3 Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when
measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 12V DC | 200mV p-p |
1.4 Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
1.5 Rise time:40 mS Max.at 220Vac input and output Max load.
1.6 Overshoot: 5% Max.When power supply at turn or turn off.
2 Protection Functions:
2.1 Short circuit protection: auto recovered when short circuit faults remove.
2.2 Over current Protection: auto recovered when over current faults remove.
2.3 Over load protection: auto recovered when over current faults remove.
3 Test: Drop test
4 Safety Requirement:
4.1 Safety Standard: Safety: Design by IEC60950 standard.
4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
5 EMI Requirement:
Designed according to the following standard:
5.1 K 60950-1(2011-12)
2. *Related Products*:
| KC, KCC Certification Power Supply Series |
| Model | Size/mm | Input Voltage | Power | Output Voltage | Current |
| HX-60-12KC | 159*98*42 | 185-264vAC | 60W | 12V | 5A |
| HX-75-12KC | 159*98*42 | 185-264vAC | 75W | 12V | 6.25A |
| HX-100-12KC | 159*98*42 | 185-264vAC | 100W | 12V | 8.33A |
| HX-60-24KC | 159*98*42 | 185-264vAC | 60W | 24V | 2.5A |
| HX-75-24KC | 159*98*42 | 185-264vAC | 75W | 24V | 3.13A |
| HX-100-24KC | 159*98*42 | 185-264vAC | 100W | 24V | 5A |
| HX-150-12KC | 190*110*50 | 185-264vAC | 150W | 12V | 12.5A |
| HX-200-12KC | 190*110*50 | 185-264vAC | 200W | 12V | 16.67A |
| HX-150-24KC | 190*110*50 | 185-264vAC | 150W | 24V | 6.25A |
| HX-200-24KC | 190*110*50 | 185-264vAC | 200W | 24V | 8.33A |
| HX-250-12KC | 190*110*50 | 185-264vAC | 250W | 12V | 20.83A |
| HX-250-24KC | 190*110*50 | 185-264vAC | 250W | 24V | 10.42A |
| HX-350-12KC | 214.5*114*50 | 185-264vAC | 350W | 12V | 29.2A |
| HX-400-12KC | 214.5*114*50 | 185-264vAC | 400W | 12V | 33A |
| HX-350-24KC | 214.5*114*50 | 185-264vAC | 350W | 24V | 14.58A |
| HX-400-24KC | 214.5*114*50 | 185-264vAC | 400W | 24V | 16.67A |

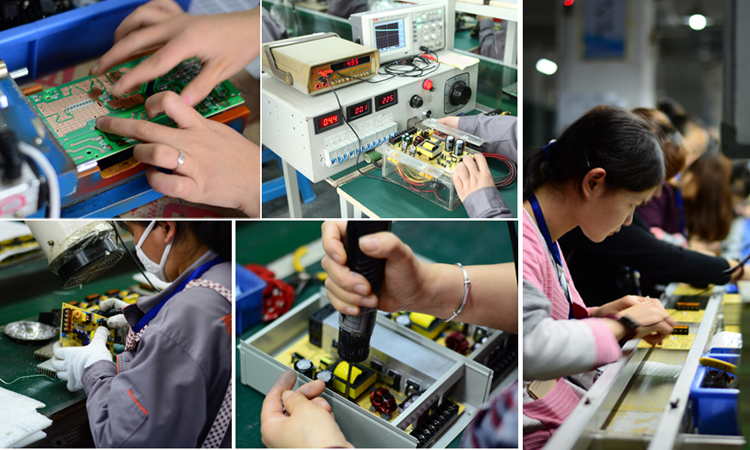

--By 6 steps, Whoosh Power Supply Ensures Stable Quality:
3. *Packaging & Shipping*:
--Regular packing: Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).
--Shipping:
4. *Company Information*:

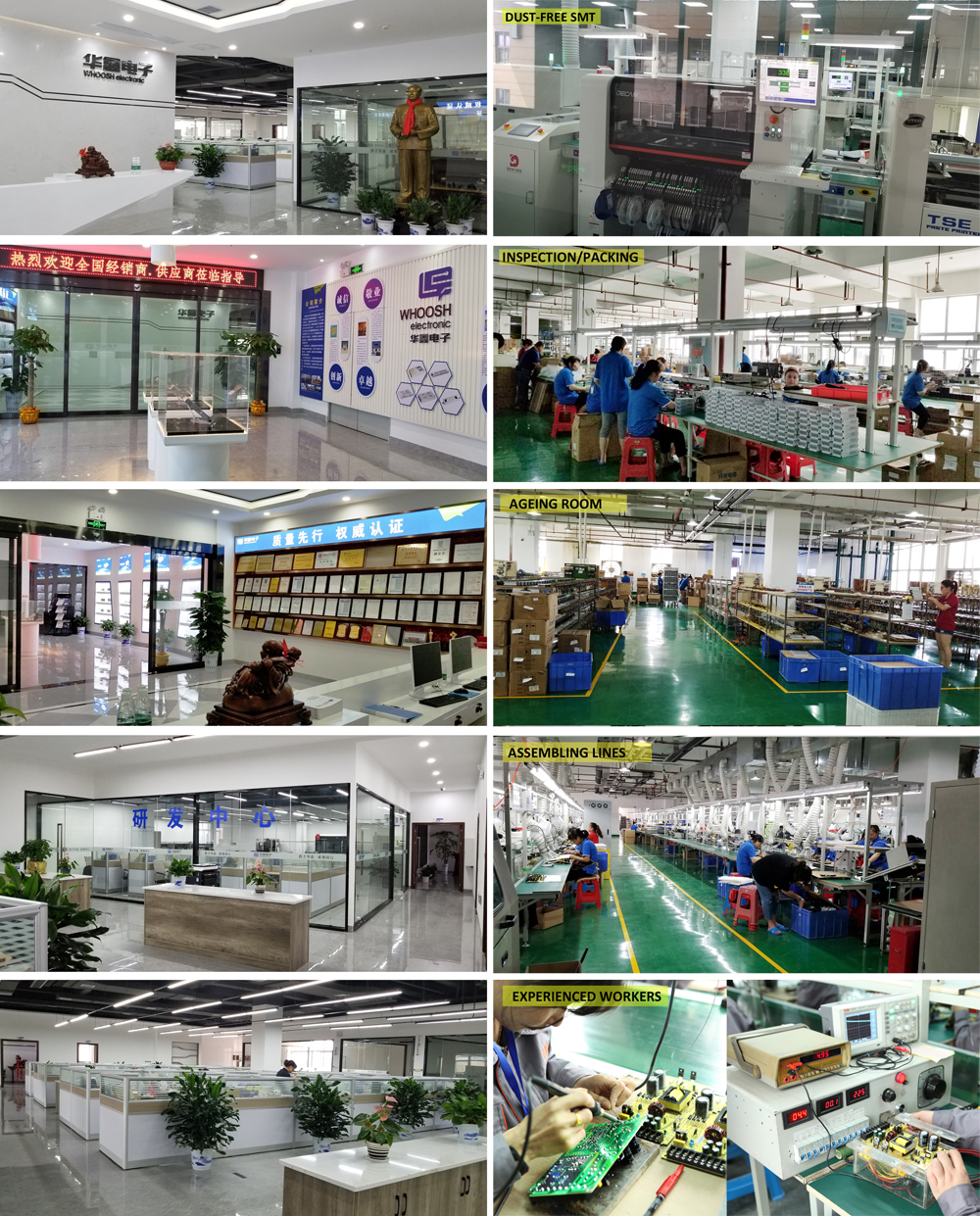

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.
We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.
WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.
What's more, defective rate is less than 1% within 2 years.
--We are on the exhibitions!
Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)
--Honor & Certifications:
ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.
5. *FAQ*:
Q1: Can I get samples?
A: Yes, 1pc is available if needed.
Q2: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.
Q3: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.
Q4: How about delivery time?
A: 1-25days which depends on detail items and quantity.
Exporting port: Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.
After-sales service:
A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
We will always behind you to support you with less than 1% natural defective rate.
Payment term: T/T, Western Union, PayPal, or negotiate when order.
*Any needs, we are always here for you.*
